Product introduction:
Size/Spec: 20db, 824-896MHz

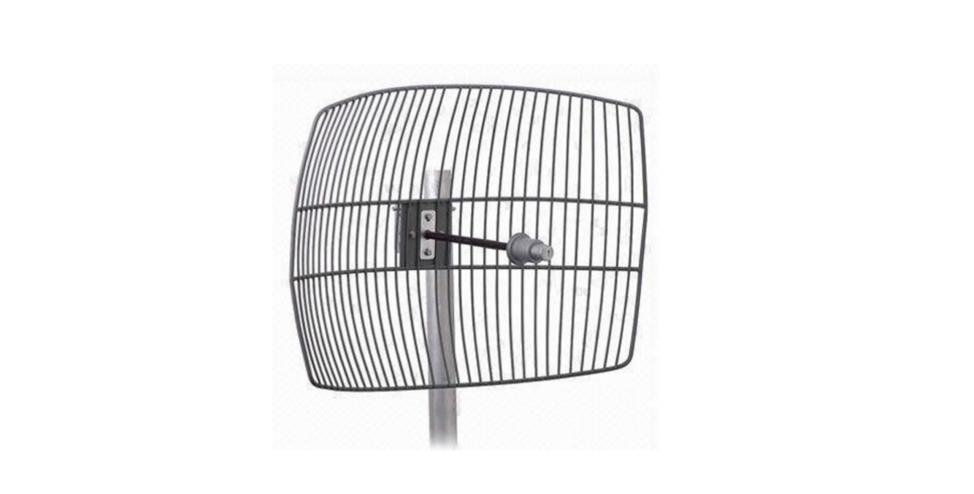

Function: Grid parabolic antenna
Connector N female or customized
Polarization Vertical
|
Model |
ZD-SGD824-896-20 |
|
Frequency Range |
824-896-MHz |
|
Bandwidth |
72-MHz |
|
Gain |
20-dBi |
|
Beamwidth |
H:13° E:13° |
|
F/B Ratio |
≥30-dB |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Max power |
100 -W |
|
Nominal Impedance |
50 -Ω |
|
MECHANICAL |
|
|
Connector |
N female or customized |
|
Antenna Dimension |
1.5-M |
|
Weight |
25-Kg |
|
Rated Wind Velocity |
60-m/s |
|
Mast Diameter |
50 to 75-m |
