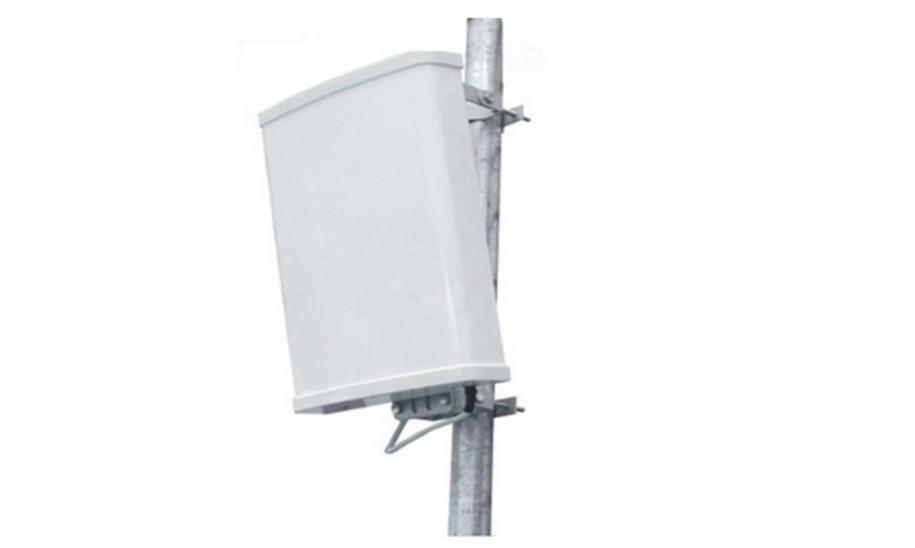

Product introduction:
Function: transmission & reception of signal
Size/Spec: 11dBi ，698-960/1710-2700MHz
| Electrical Specifications | |
| Model | 627-11X60A |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 10±1dBi |
| Horizontal Beamwidth | 60±8º |
| Vertical Beamwidth | 30±2º |
| F/B ratio | ≥20dB |
| VSWR | ≤1.8 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Max. Power | 100W |
| Connector | 7-16 DIN Female |
| PIM, 3rd Order, 2 x 2 W | 140dBc |
| Mechanical Specifications | |
| Dimension | 620*280*115mm |
| Weight | about 4.7kg |
| Reflector material | Cu/Al |
| Operational Humidity | < 100％ |
| Radome Color | white |
| Radome material | PVC UV resistant |
| Operating temperature | -40~+60Cº |
For more information, please check Paxtal-telecom E-catlogo. or Contact with Sales@paxtal-telecom.com
